WITCH -SERIES - GGWS 1009

Witch  Series is a range of products based on the climbing function, which plays an important role in children's physical and mental development. Children's curiosity to explore has been emphasised by using the witch theme and witch house concepts.
The graphics embroidered on the product to create the feeling of a witch's house are designed to reinforce the theme and are included with the product. When designing the house, a trapezoidal house appearance was created by using different heights.

Product Code: GGWS 1009
Age Range: 2-12 years
Safety Area: 108.80 m²
Fall Height: 2.10 m
Alternative Product
Certificates: TS EN 1176
Activities:
  • 1 Hanging
  • 1 Balance
  • 1 Crawling
  • 1 Equality
  • 1 Slide
  • 1 Running
  • 1 Sitting
  • 1 Socialize
  • 1 Climbing

Skill Chart

Physically
Cognitive
Social
Sensory
Cemer in the World world cemer
red slide and playground with climbing nets
red slide and playground with climbing nets
red slide and playground with climbing nets
red slide and playground with climbing nets
red slide and playground with climbing nets
Cemer Download
Discover The Details !
Find Your Spare Parts

This tool allows you to zoom in the spare part selected from the model, view it in detail and access the part code.

360 Viewing Options

This tool allows you to view the scene by rotating it relative to the center point.

Measuring

This tool provides detailed measurements of all the parts on the product.

Exploded View

This tool allows you to view the internal structure or details of objects by breaking them into pieces.

Details of Materials

You can review the details of the materials used below.

CMRRope

CMRRope

Single-casing aluminum cast spheres with CmrRope ™ is formed by 6 strands of galvanized wires and a core either steel or fiber. Each strand is tightly braided with Polyester which is adhered to galvanized wires with a patented method to create a solid surface where polyester meets with wires. So extra protection is achieved against friction and vandalism. Surface is extremely abrasion and UV resistant also fire

Sphere

Sphere

Single-casing aluminum cast spheres with anticorrosion treatment are placed at junctions.These spheres are designed with integrated bedding for connecting pipes.

3 - Layer Coating

3 - Layer Coating

The metal parts are made of ST 37 steel with a 3-stage coating process (including sandblasting and primer). The sandblasting, solvent-free zinc primer coating, and electrostatic powder coating provide corrosion resistance under extreme weather conditions and UV exposure.

aluminum cast connectors

aluminum cast connectors

Single-casing aluminum cast connectors are compressed with 300 tons to avoid moving and premature wear. “E (end stop) connector’’ is shapely and pleasant to grip with no sharp angles or edges. These connectors are fastened to main frame either to welded flanges on main frame or with “C” aluminum clamps to main frame.

Game Values

You can review our game values ​​below.

Cemer

Playground Observation Point

It provides children with a safe playground, encouraging them to explore their surroundings while offering opportunities for rest and observation. This enhances communication, group play, and creativity, supporting exploration and role-playing games .

Cemer

Climbing

It develops children's balance and coordination skills. Stepping carefully to maintain balance strengthens motor skills and builds self-confidence. It offers children a fun and engaging playground experience .

Cemer

Climbing

It develops children's balance and coordination skills. Stepping carefully to maintain balance strengthens motor skills and builds self-confidence. It offers children a fun and engaging playground experience .

Cemer

Roof

These structures offer children the opportunity to role-play and create scenarios with different themes. This process enhances social interaction, develops communication and collaboration skills, and supports imagination.

View More

You can access technical drawings and many other information in this area.

red slide and playground with climbing nets red slide and playground with climbing nets red slide and playground with climbing nets red slide and playground with climbing nets

Product Sheets

Product information pages provide detailed information on capacity, size, fall height, safety, materials, and functions.

Download PDF
Cemer

Technical Specification

You can access the Technical Specification Request Form by clicking on the link below.

Get The Form
Cemer

Anchorage Details

According to Cemer Playground Equipments, the ground surface compliant with EN standards has shock-absorbing properties and ensures safety.

Download PDF
Cemer

After Sales

Cemer provides professional service with production and after-sales support. All products are equipped with metal tags under the Lifetime Service Warranty, making spare parts supply easy for a lifetime.

Download PDF

Product Overview

Detailed information about product features, environmental compatibility, and various application areas.

Product Specifications

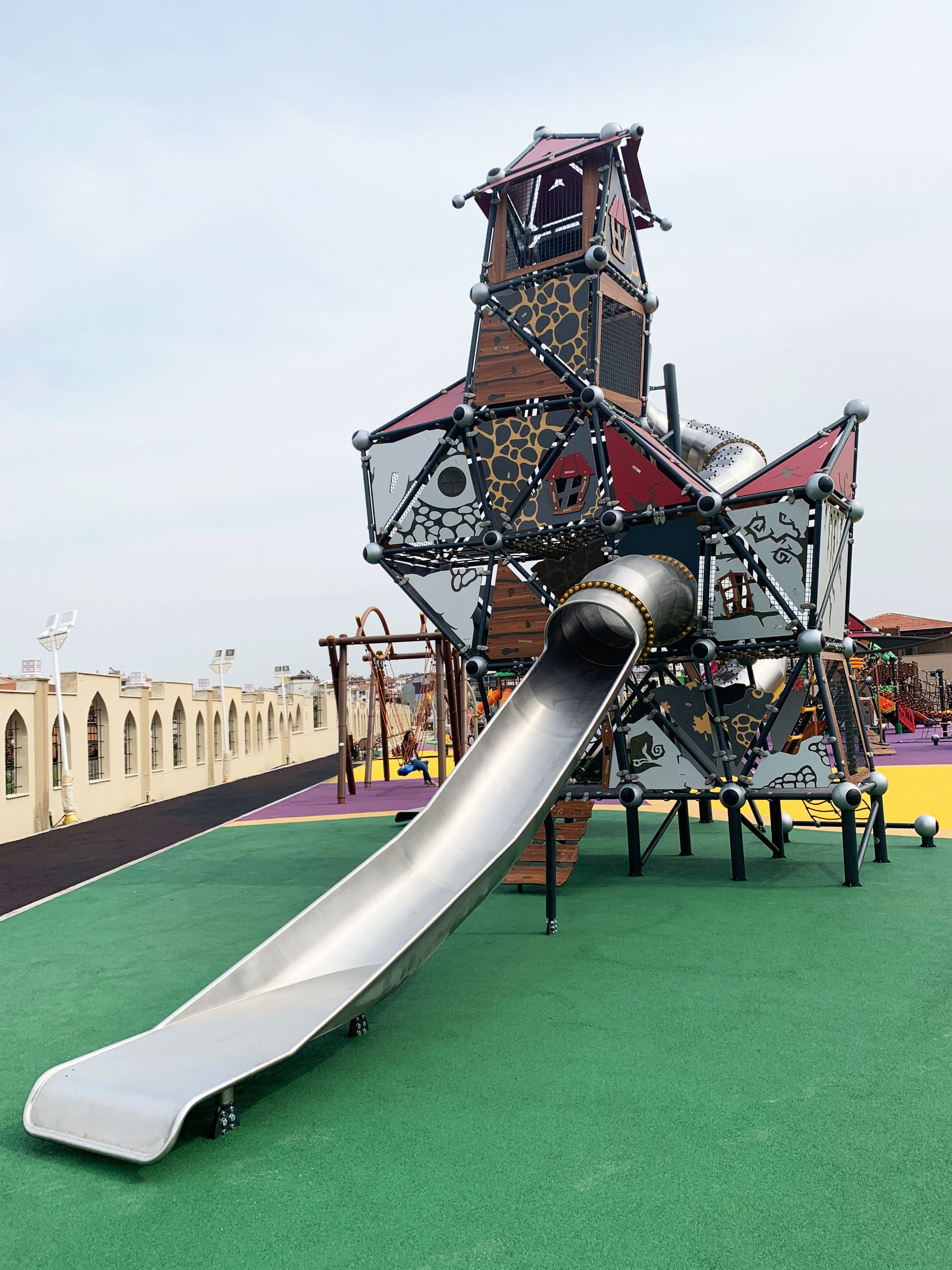

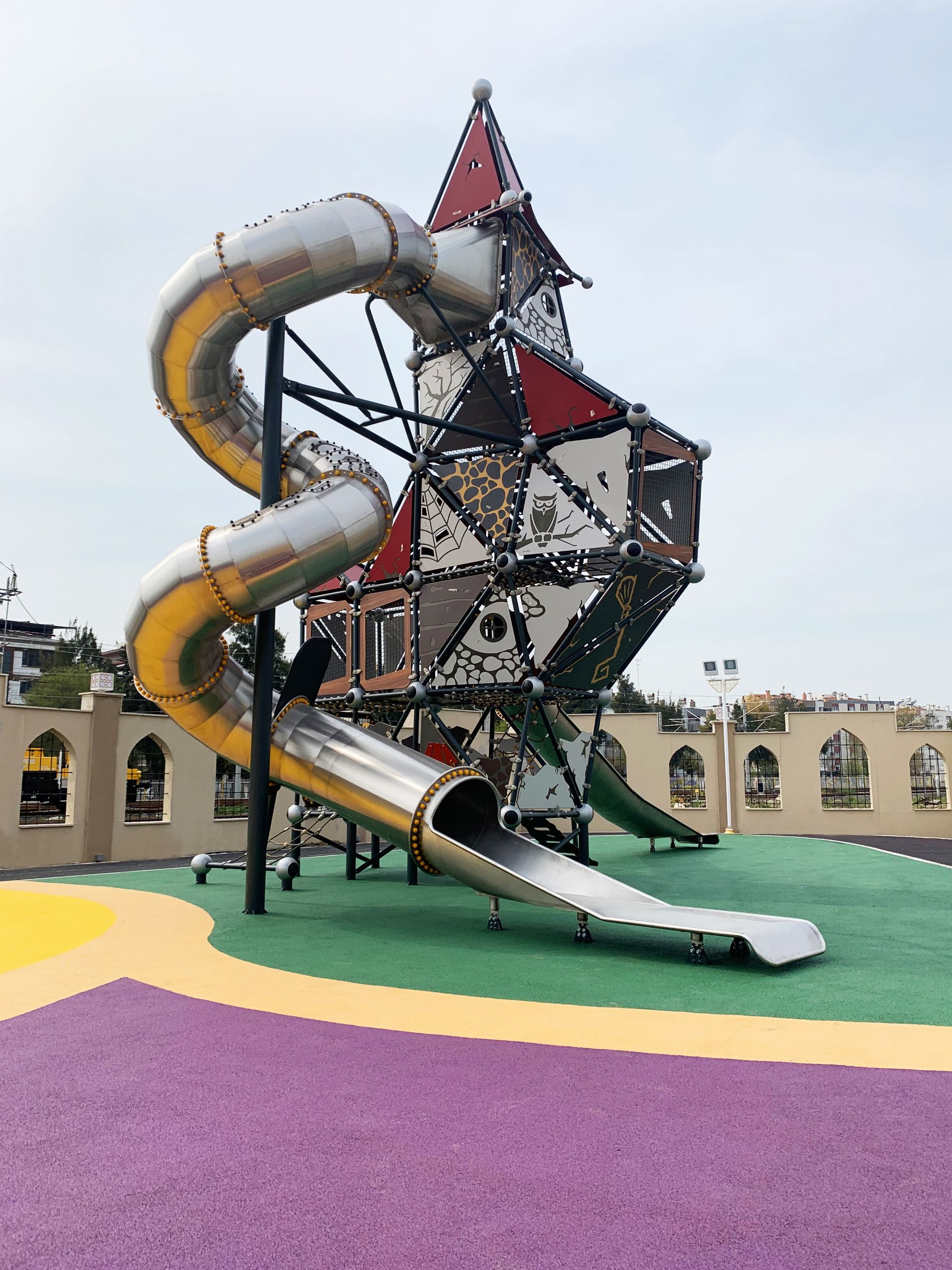

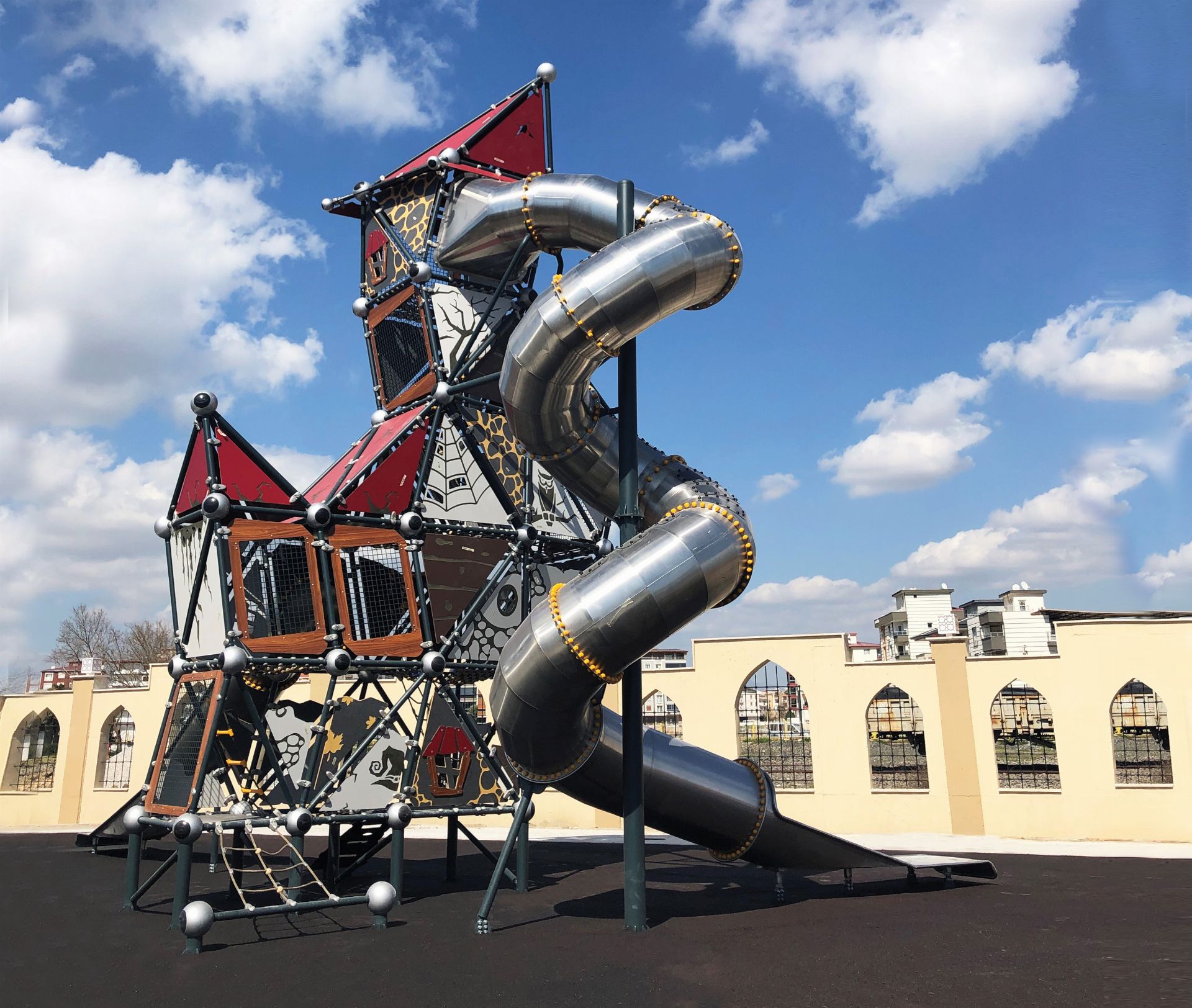

WITCH Series GGWS 1009 is a safe playground where children can improve their physical and social skills while having fun. This themed playgroup is equipped with 3 slides. While developing their motor skills and coordination, children can also use their imagination.

Metarial Details

Steel pipes and profiles are resistant to rust and increase the structural strength. Ropes are produced with six-strand galvanized steel wire and polyester material. This special process ensures a strong surface on the wire and prevents abrasion. It is UV resistant and flame retardant.

Environmental Harmony and Aesthetics

WITCH Series GGWS 1009, In the design of the park, sections at different heights were created inspired by the witch's hat. These height differences both gave the structure a dynamic silhouette and created a fairytale and magical atmosphere.

Areas of Use

-Public parks and recreational areas.
-Preschool institutions and primary schools.
-Residential and housing complex gardens.
-Hotels and holiday resorts.
