Product Sheet Generator MGCS 102-P

CMR BEAVER | Wooden & Sustainable Playgrounds / Wooden Castle Playgrounds

MGCS 102-P

Product Information

Dimensions (W x L x H) : 2.70 x 4.05 x 3.70 m

Age Group:3-12 years

Capacity:11

Fall Height : 1.55 m

Safety Area : 28.30 m²

Activities

Skill Experiences

Physically

Cognitive

Social

Sensory

CASTLEWOOD SERIES - MGCS 102

Castlewood is a modular wooden playgroup series that consists of multiple castle and medieval themed play stations. Some elements such as slides, slide poles and ghost slides are designed as target stations and located on semicircle metal balconies. Children are expected to go through rope climbing stations that challenge their physical skills to reach the target play elements. Thanks to the role-playing areas created under the platforms in accordance with the theme, it is aimed to contribute to the social development of children and to provide a fairy-tale castle theme experience.

CMR BEAVER | Wooden & Sustainable Playgrounds / Wooden Castle Playgrounds

MGCS 102-P

CMRRope

Single-casing aluminum cast spheres with CmrRope ™ is formed by 6 strands of galvanized wires and a core either steel or fiber. Each strand is tightly braided with Polyester which is adhered to galvanized wires with a patented method to create a solid surface where polyester meets with wires. So extra protection is achieved against friction and vandalism. Surface is extremely abrasion and UV resistant also fire

Wood

In our designs, premium wood species such as Iroko, Sapelli, and Larch (Larex) are used, combining aesthetics with durability. Iroko, known as African Teak, provides long-lasting use in playground equipment by showing natural resistance to decay and external factors with its high oil content. Sapelli, recognized as African Mahogany, maintains its form for years thanks to its dense fiber structure and high mechanical resistance, while Larch (Larex) offers superior resistance to water and moisture due to its resinous nature. The natural strength of these woods adds both timeless elegance and structural integrity to our products against the harsh conditions of the outdoors.

3 Stages Coating

The metal parts are made of ST 37 steel with a 3-stage coating process (including sandblasting and primer). The sandblasting, solvent-free zinc primer coating, and electrostatic powder coating provide corrosion resistance under extreme weather conditions and UV exposure.

Aluminum Cast Connectors

Single-casing aluminum cast connectors are compressed with 300 tons to avoid moving and premature wear. “E (end stop) connector’’ is shapely and pleasant to grip with no sharp angles or edges. These connectors are fastened to main frame either to welded flanges on main frame or with “C” aluminum clamps to main frame.

HDPE/HPL Slide

The sliding surface of the equipment is made of high UV-resistant HDPE material, which serves as an alternative to stainless steel slides in sunny environments. The sides of the slide are manufactured from HPL and HDPE materials.

Metal ST 37

ST 37 is a versatile material known as structural steel, which can be easily shaped thanks to its low carbon content and offers excellent weldability. Frequently preferred in applications such as playground equipment where safety and durability are prioritized, this metal stands out with its balanced mechanical performance and high load-bearing capacity. Since its surface is highly suitable for chrome plating, galvanization, or painting processes, it provides high resistance to outdoor conditions and offers effective protection against corrosion.

CMR BEAVER | Wooden & Sustainable Playgrounds / Wooden Castle Playgrounds

MGCS 102-P

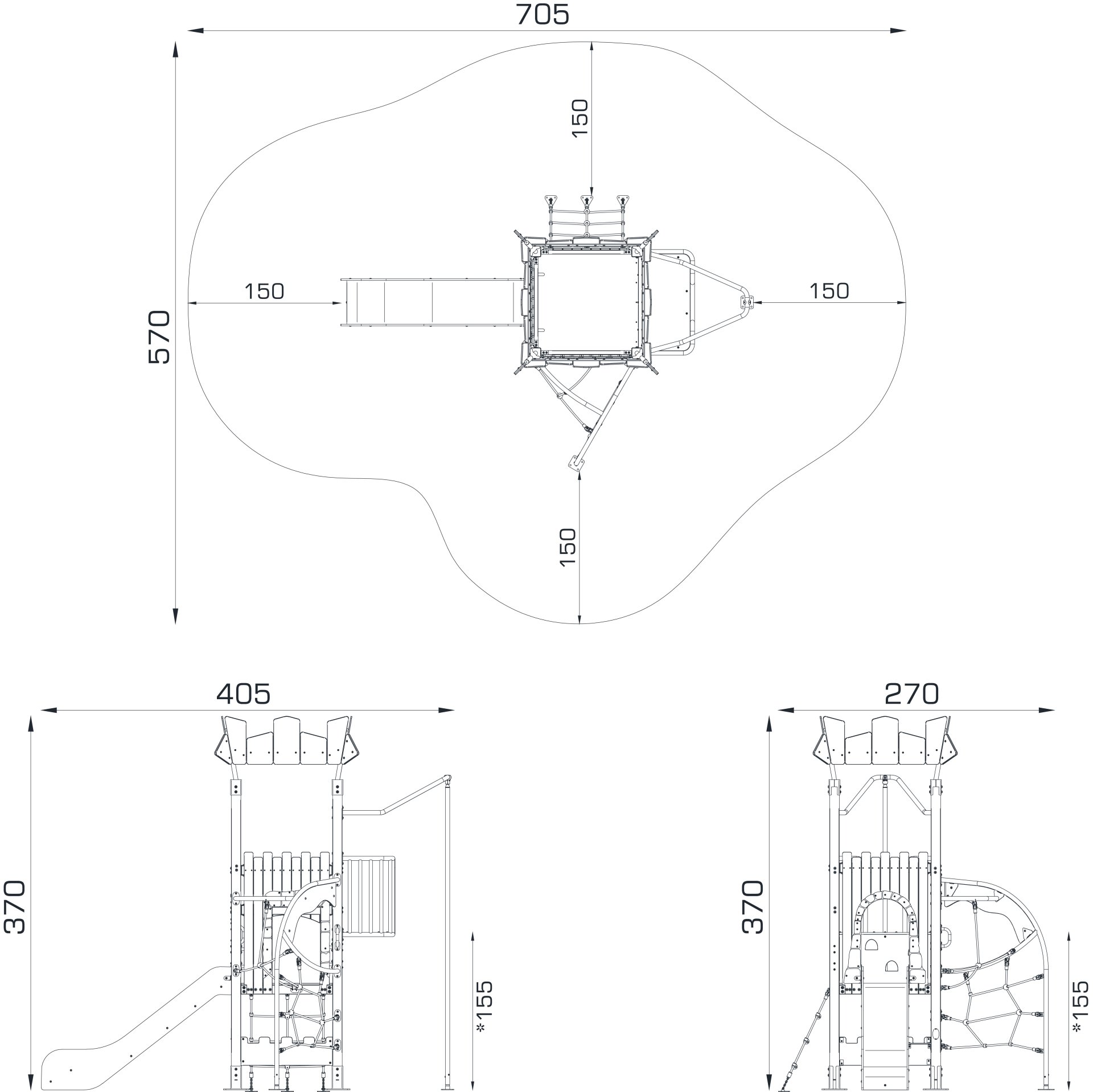

Front View

Side View

*Maximum Fall Height Measurements shown are in centimeters.

CMR BEAVER | Wooden & Sustainable Playgrounds / Wooden Castle Playgrounds

MGCS 102-P

FEATURED PLAY VALUES

Slide

The slide boosts balance, muscle development, and physical activity. It enhances empathy, provides a safe sliding experience, builds courage, improves speed perception, and supports coordination skills.

Role Play

The module, designed according to the theme, enhances imagination and creativity through role-playing games. It encourages socialization and teaches turn-taking.

Table

It provides space for both group and individual games. It can serve as a socializing point as well as a resting station.

Climbing

It develops children's balance and coordination skills. Stepping carefully to maintain balance strengthens motor skills and builds self-confidence. It offers children a fun and engaging playground experience .

Climbing

Fire Pole

Sliding down supports body coordination, works the arm and abdominal muscles, and contributes to bone development. Children learn to take risks and play in turn.

CMR BEAVER | Wooden & Sustainable Playgrounds / Wooden Castle Playgrounds

MGCS 102-P

Hanging

To hang in arms is the act of carrying the body with the hands or arms, possible to traverse to another platform or play item.

Pull

To pull is the act of pulling item towards you or you towards an item with one or both hands, or possibly with the entire body.

Rotate

To rotate involves a vertical or horizontal slower paced turn of the body, facilitated by a piece of equipment.

Balance

To balance is to stay upright when walking or standing on a surface that makes this challenging.

Spin

To spin involves a fast, repeating horizontal or vertical turn of the body on a piece of equipment that facilitates social interaction.

Crawling

To crawl is the movement of moving forwards or backwards, cross-coordinating arms and legs, on a horizontal or slightly incline surface.

Accessible

These are special areas where children with disabilities can play and have fun and without feeling different.

Collaboration

Collaboration is the feature of the playgroup to bring all children together, regardless of gender, enabling them to play and interact around a shared goal.

Interaction

It is children's communicating with the play group by touching and feeling.

Push

To push is the act of pushing an item away from you with one or both hands, possibly with the entire body.

Slide

To slide is the act of moving fast downwards stead on a slide.

Running

Running is an activity that encourages children to interact with the playgroup by running and develop physically.

Sound-Rhythm

Sound and rhythm transform children's movements in the play area into an artistic exploration, simultaneously developing both their motor skills and auditory perception.

Sitting

It is an area where children can rest while sitting and have fun.

Role Play

Role play is motivated through play items that stage a frame, place or environment for acting out make believe or role play scenarios.

Rock

To rock is the action of rocking back and forth, or sideways, on e.g. a piece of spring equipment.

Swing

To swing is the movement of swinging back forth, of in circular movement, seated, standing or lying, in a unhindered arc.

Socialize

To socialize is the act of meeting, communicating or cooperating in an activity that stimulates and facilitates social interaction.

Glide

To glide is the act of moving from one point to another without shifting the feet, in a horizontal or vertical movement in a seated, lying or standing position, letting gravity do the work.

Climbing

To climb is the act of moving upwards, cross coordinating arms and legs, on a vertical or inclined surface or net.

Bouncing

To bounce is the act of bouncing on a responsive, flexible, elastic or tensile surface.

Logical Reasoning

Reasoning is a cognitive process of discovery within the playgroup that enhances children's problem-solving and analytical thinking skills through strategic obstacles and logical steps.
