Product Sheet Generator CA 181

Freestanding Playground Equipments / Playground Swings

CA 181

Product Information

Dimensions (W x L x H) : 16.30 x 21.30 x 2.75 m

Age Group:3-12 years

Capacity:32

Fall Height : 1.80 m

Safety Area : 392.00 m²

Activities

Skill Experiences

Physically

Cognitive

Social

Sensory

SWING - CA 181

Swings are swing units that enable children to gain spatial awareness at a young age, which enhances their perception of gravity and perspective. It is aimed that all children discover the swinging experience
with singular use & combined use swings, and swings that are specially designed for the disabled.

Freestanding Playground Equipments / Playground Swings

CA 181

Metal Parts

Metal parts are comprised of ST 37 Steel with a 3-step metal finish. Sandblasting and solvent-free zinc primer coating and electrostatic powder paint application is inherently corrosion resistant under extreme weather conditions and UV.

Robot Joint

Robot joint is a custom-designed high durability swing joint that also eliminates any figder entrapment issue. The swing upper joint mechanism was produced with the precision casting technique Between the two ears welded on the swing carrier pipe, rigid bedding to be fixed with M12x80 bolts and a Teflon bearing should be used to prevent abrasions.

HPL Panels

High quality panels made of HPL panels are milled to provide a smooth, gently rounded edge. The thickness of the panels varies according to its purpose for floors, roofs, and walls. These panels are connected to steel pipes or profiles with cast aluminum panel clamps or flanges.

Double Walled Rotation

The swing is manufactured using a double-walled rotational molding technique from an elastic polymer material that provides shock absorption without the need for additional rubber components and recovers its shape after impact. For enhanced durability, the product is reinforced with a circular metal frame at the bottom.

CmrRope

CmrRope ™ is formed by 6 strands of galvanized wires and a core either steel or fiber. Each strand is tightly braided with Polyester which is adhered to galvanized wires with a patented method to create a solid surface where polyester meets with wires. So extra protection is achieved against friction and vandalism. Surface is extremely abrasion and UV resistant also fire retardant.

Hemparope

Its natural structure makes this rope environmentally friendly, and its high strength allows it to perform excellently even under harsh conditions. In today’s time, when demand for sustainable products is increasing, this rope has become a preferred option with growing environmental awareness.

Freestanding Playground Equipments / Playground Swings

CA 181

HDPE/HPL Slide

The sliding surface of the equipment is made of high UV-resistant HDPE material, which serves as an alternative to stainless steel slides in sunny environments. The sides of the slide are manufactured from HPL and HDPE materials.

Freestanding Playground Equipments / Playground Swings

CA 181

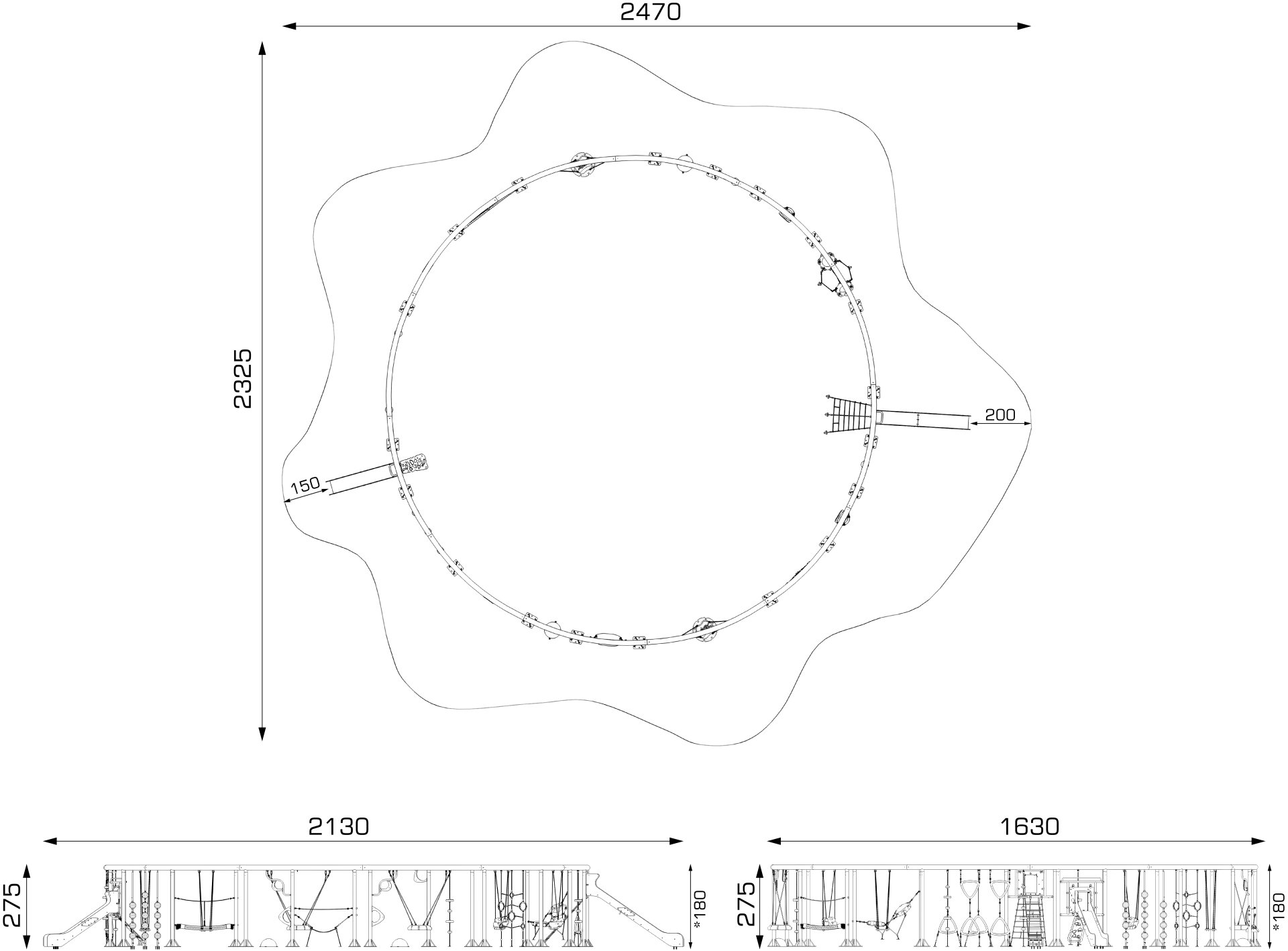

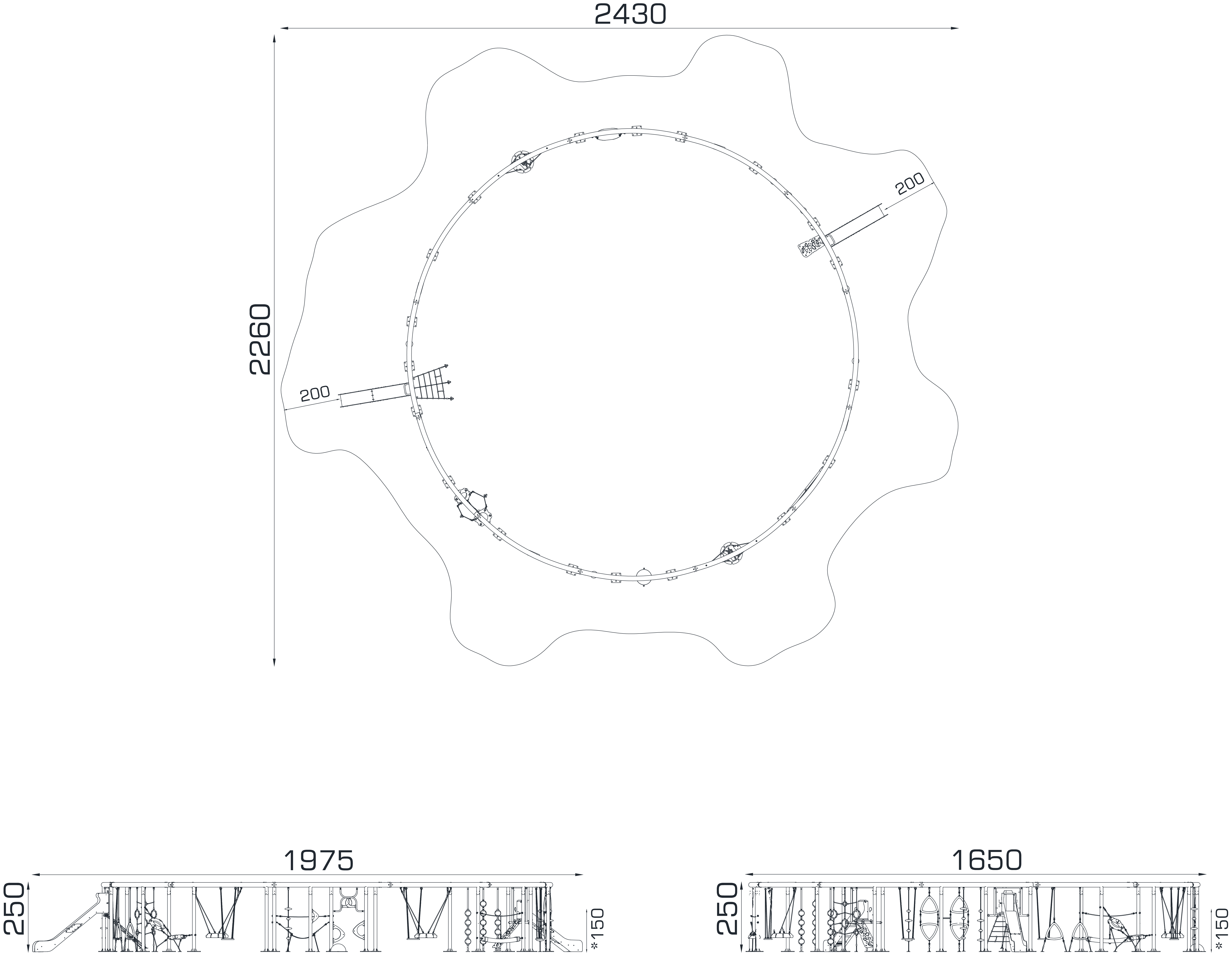

Front View

Side View

*Maximum Fall Height Measurements shown are in centimeters.

Freestanding Playground Equipments / Playground Swings

CA 181

FEATURED PLAY VALUES

Swing

It develops children's balance, coordination, and motor skills. The swinging motion strengthens body control, helps them calm down, and boosts their self-confidence. This playgroup encourages social interaction among children.

Life Buoy Rings

The rings, which offer children the opportunity to rest and socialize in parks, help develop balance and motor skills in a safe environment. They reinforce children's ability to interact with friends, and enhance their empathy and teamwork skills.

Triangle Swings

Triangle swings provide a balanced swinging motion with their rope-secured design, helping children develop motor skills while offering comfort during rest. They offer a fun and safe play experience.

Swing

Swing

Balance Stations

These stations allow children to move safely at different heights. They enhance courage, exploration, and creativity, while developing coordination, motor skills, and social interaction, offering opportunities for collaboration.

Hemparope

It improves children's balance and coordination skills. By taking careful steps to maintain balance, children strengthen their motor skills and gain self-confidence. It provides children with an enjoyable play area.

Hammock

The hammock offers children both rest and swinging experiences. The gentle swinging motion enhances balance and motor skills, while providing a space for social games and imaginative roles, supporting physical and mental relaxation.

Slide

It supports balance and muscle development, encourages children to engage in physical activity, and fosters empathy. The slide offers a safe sliding experience, boosts courage, and enhances speed perception and coordination.

Freestanding Playground Equipments / Playground Swings

CA 181

Hanging

To hang in arms is the act of carrying the body with the hands or arms, possible to traverse to another platform or play item.

Pull

To pull is the act of pulling item towards you or you towards an item with one or both hands, or possibly with the entire body.

Rotate

To rotate involves a vertical or horizontal slower paced turn of the body, facilitated by a piece of equipment.

Balance

To balance is to stay upright when walking or standing on a surface that makes this challenging.

Spin

To spin involves a fast, repeating horizontal or vertical turn of the body on a piece of equipment that facilitates social interaction.

Crawling

To crawl is the movement of moving forwards or backwards, cross-coordinating arms and legs, on a horizontal or slightly incline surface.

Accessible

These are special areas where children with disabilities can play and have fun and without feeling different.

Collaboration

Collaboration is the feature of the playgroup to bring all children together, regardless of gender, enabling them to play and interact around a shared goal.

Interaction

It is children's communicating with the play group by touching and feeling.

Push

To push is the act of pushing an item away from you with one or both hands, possibly with the entire body.

Slide

To slide is the act of moving fast downwards stead on a slide.

Running

Running is an activity that encourages children to interact with the playgroup by running and develop physically.

Sound-Rhythm

Sound and rhythm transform children's movements in the play area into an artistic exploration, simultaneously developing both their motor skills and auditory perception.

Sitting

It is an area where children can rest while sitting and have fun.

Role Play

Role play is motivated through play items that stage a frame, place or environment for acting out make believe or role play scenarios.

Rock

To rock is the action of rocking back and forth, or sideways, on e.g. a piece of spring equipment.

Swing

To swing is the movement of swinging back forth, of in circular movement, seated, standing or lying, in a unhindered arc.

Socialize

To socialize is the act of meeting, communicating or cooperating in an activity that stimulates and facilitates social interaction.

Glide

To glide is the act of moving from one point to another without shifting the feet, in a horizontal or vertical movement in a seated, lying or standing position, letting gravity do the work.

Climbing

To climb is the act of moving upwards, cross coordinating arms and legs, on a vertical or inclined surface or net.

Bouncing

To bounce is the act of bouncing on a responsive, flexible, elastic or tensile surface.

Logical Reasoning

Reasoning is a cognitive process of discovery within the playgroup that enhances children's problem-solving and analytical thinking skills through strategic obstacles and logical steps.
